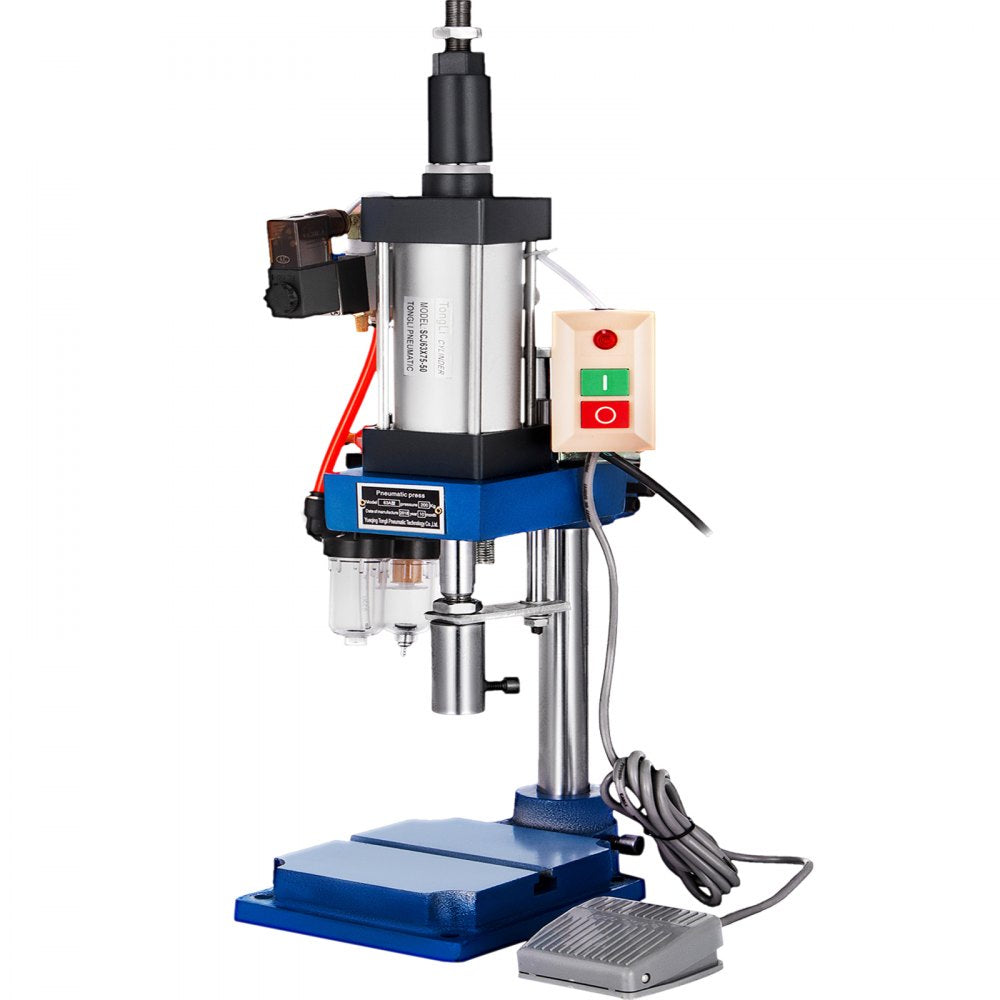

punch press machine with single column, high precision, and noise-free operation.
punch press machine with blue base, safety switch, and pneumatic components.
Top-Grade Vertical Pneumatic Punch Press Machine
Our pneumatic press uses high-performance cylinders, no noise in the hydraulic system or under standby status. Use high accuracy rotational resistance guide rod and guide plate. Saves electricity consumption and lowers production cost.
  • Note: Theoretical Output Pressure: 1121-1962 N / 114-200 kg, the actual output is about 80% theoretical output.
  • High Accuracy
  • Humanized Design
  • Simple Operation
  • Quick Adjustment
  • Widely Applicable

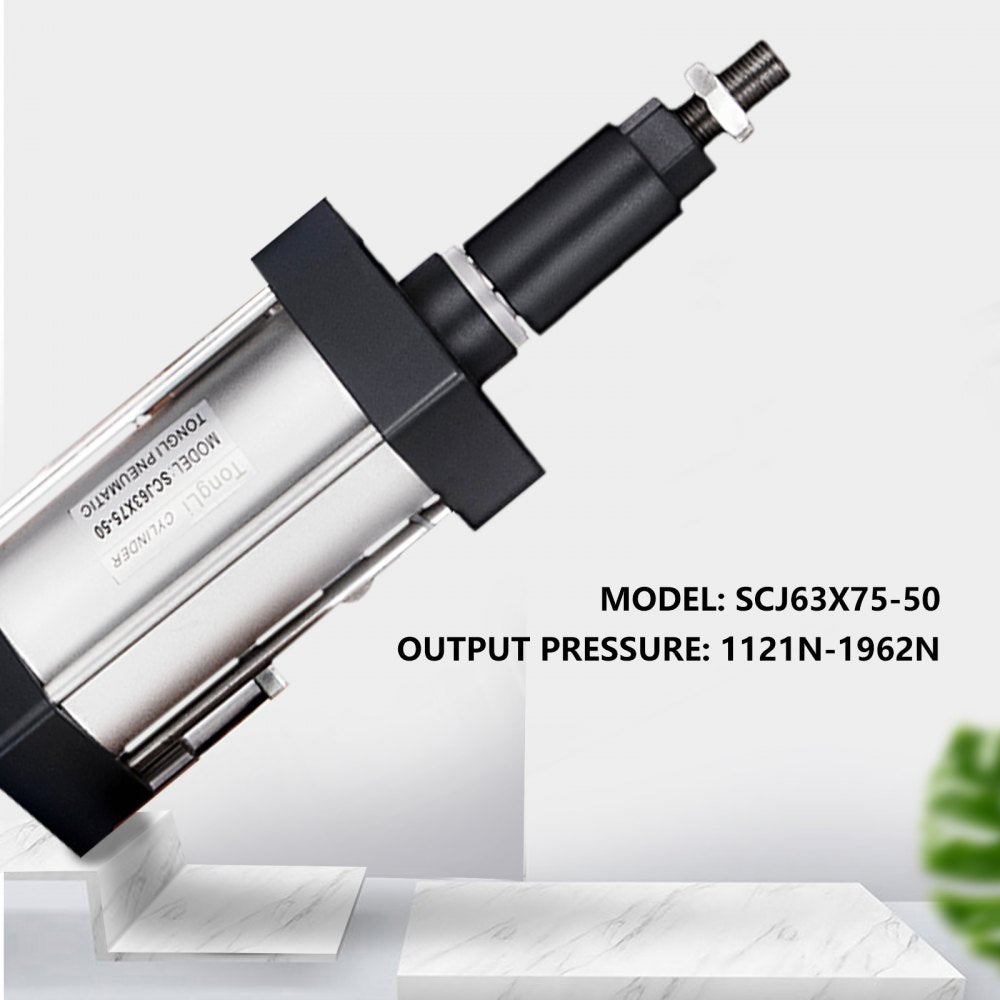

punch press machine scj63x75-50, output pressure 1121n-1962n
Highly Sealed Cylinder
Cylinder diameter 2.5" / 63 mm, the maximum stroke of 2.95" / 75 mm, adjustable range of 2" / 50 mm. Adopt a two-way sealing design, good sealing effect, high power conversion rate.

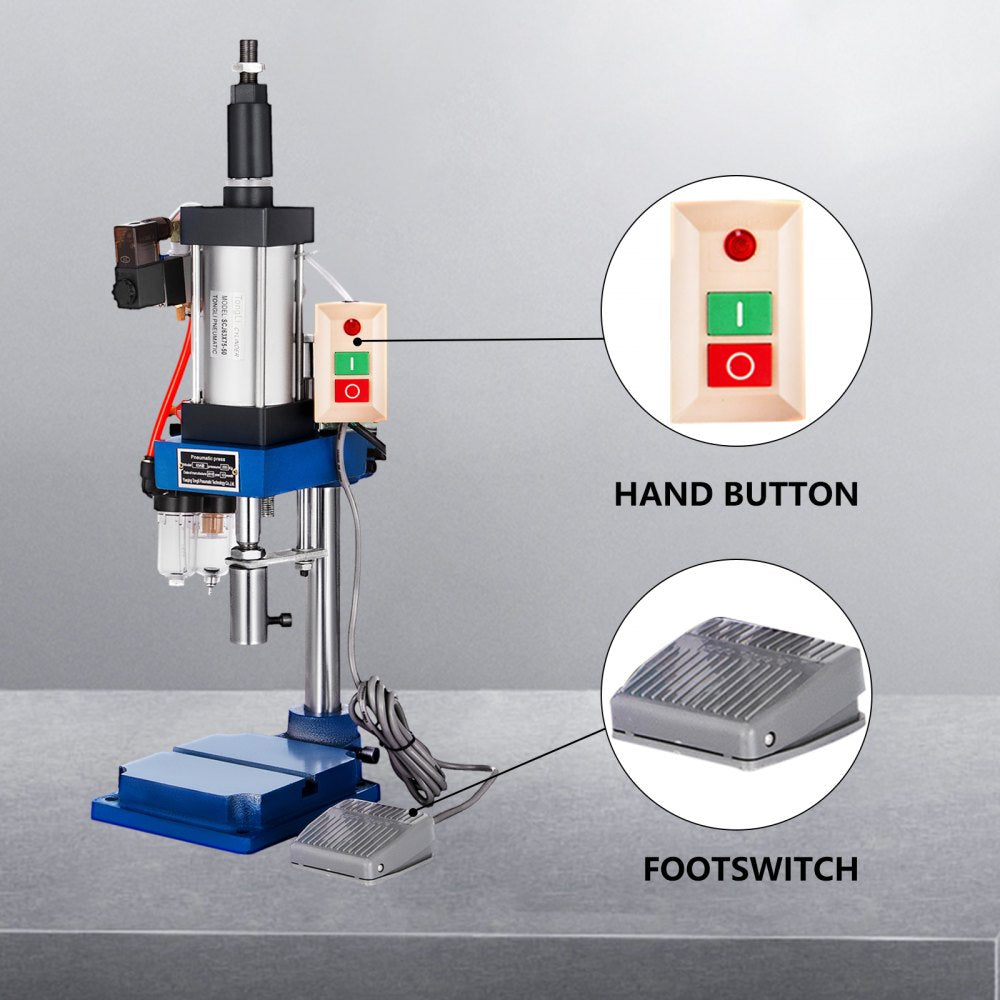

punch press machine with hand button and footswitch controls.
Hand Buttons & Footswitch
Use manual control of stamping, with a footswitch to start work, double protection device, safe and reliable operation. The footswitch cord is 6 ft / 1.8 m long and easy to use.

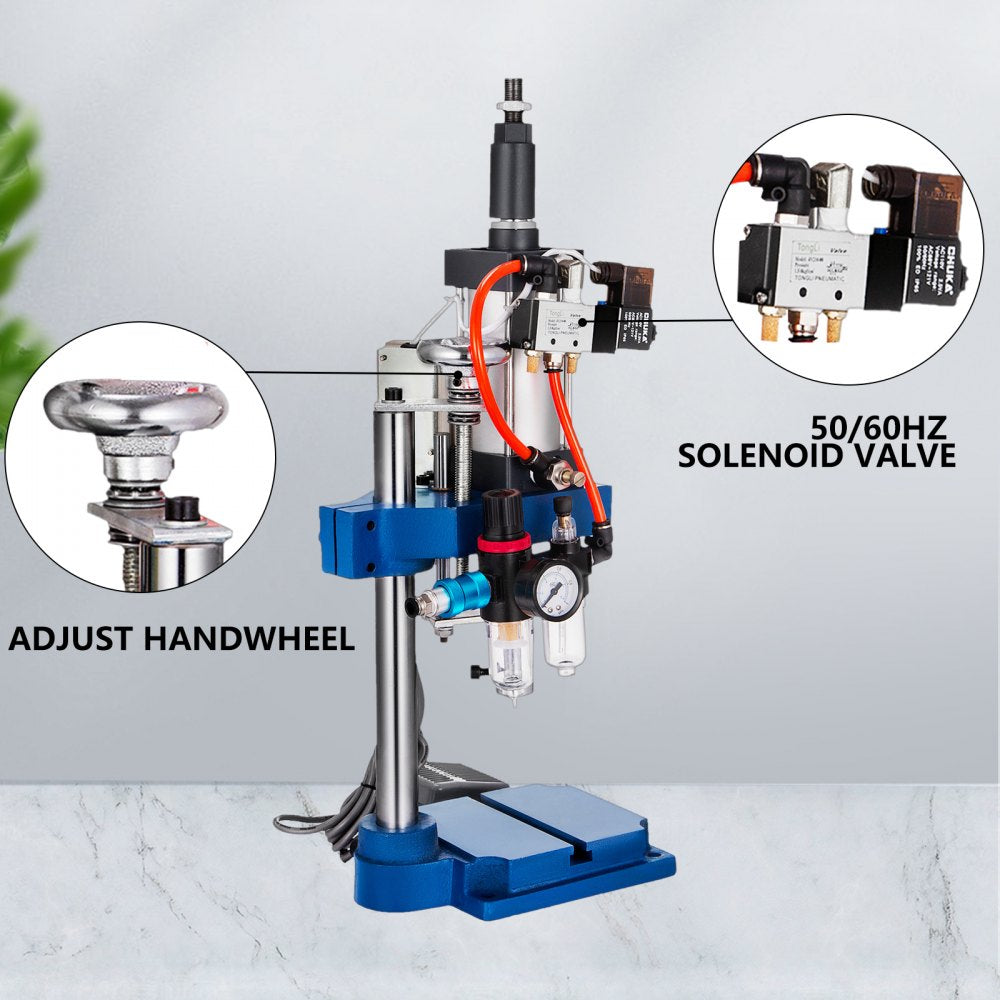

punch press machine with adjustable handwheel and 50/60hz solenoid valve.
Precision Design
Rotate the height adjustment handle to adjust the height of the body easily. The solenoid valve has high precision and sensitivity and can operate at a high frequency for a long time.

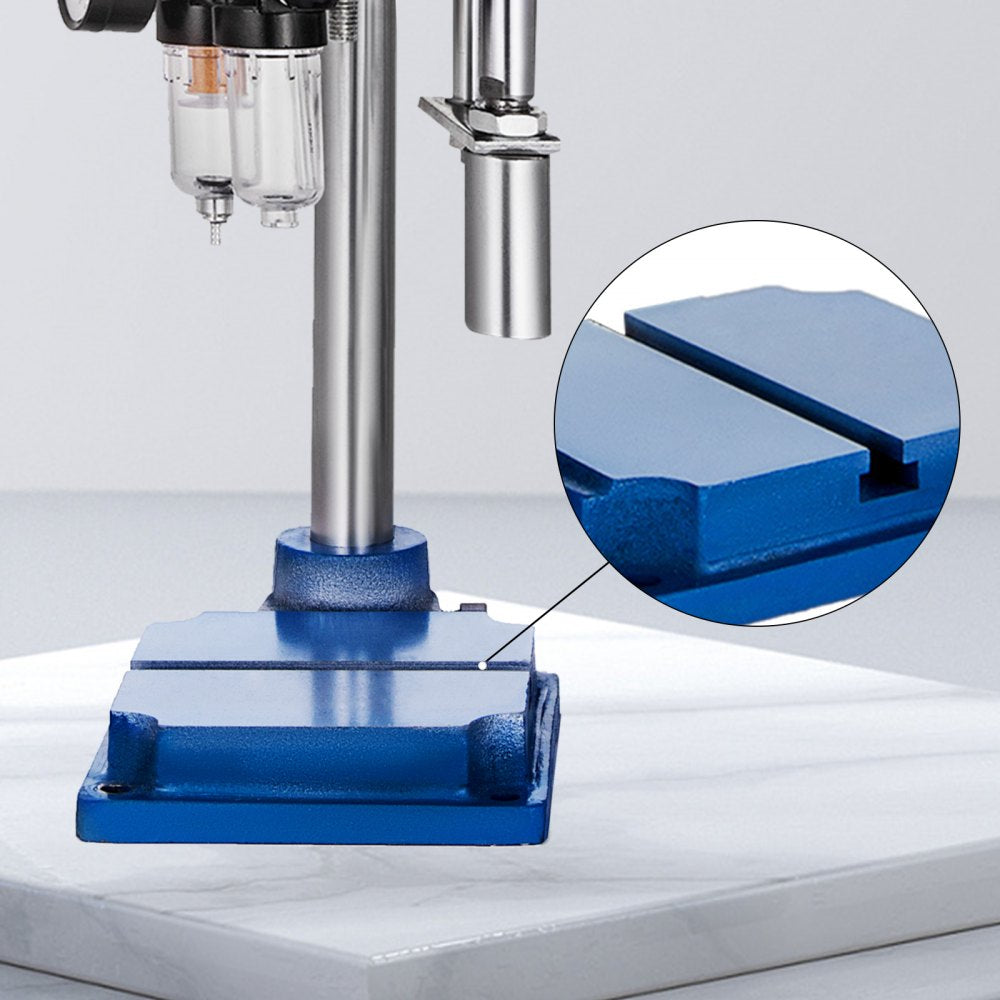

punch press machine with blue base and close-up of precision details.
T-groove Base
Pneumatic presses with a 9" x 6" size T-shaped groove HT200 cast iron base, wear durability, securely mounted. It is easy to install various molds, and it is very convenient to install and disassemble.

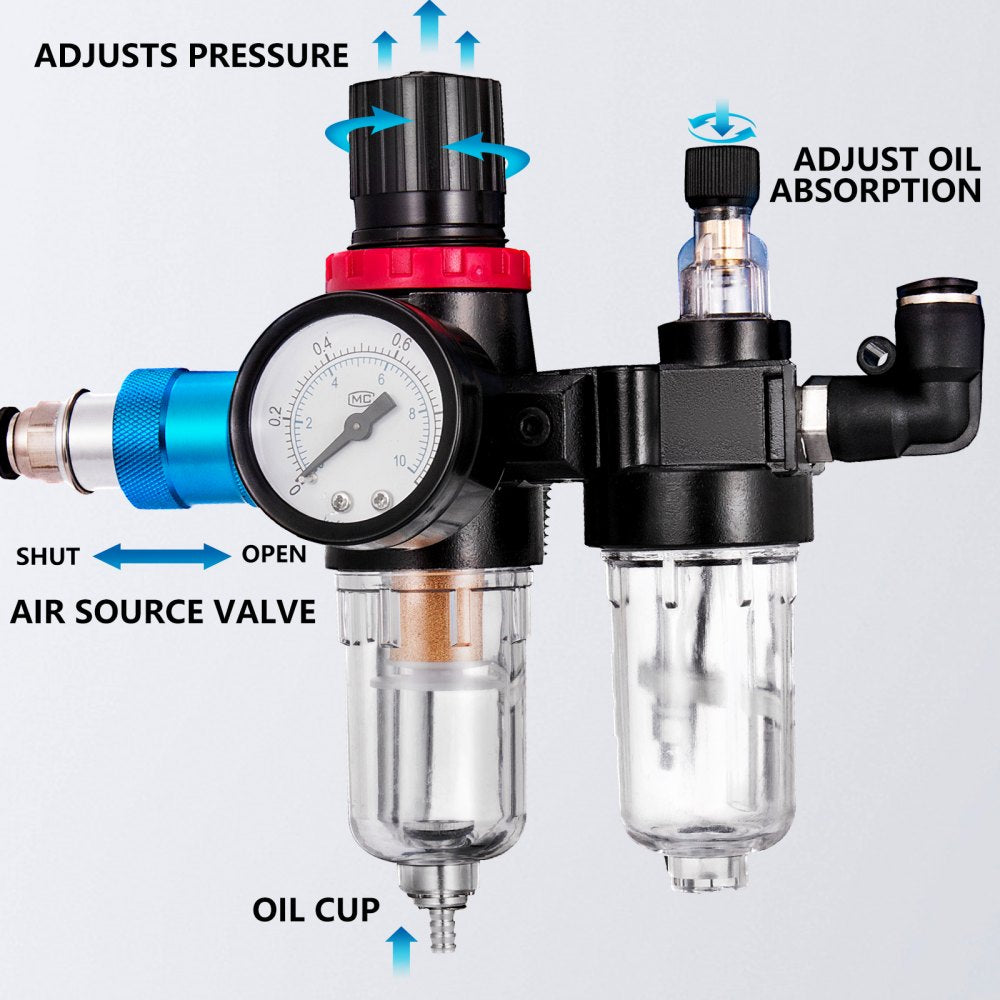

punch press machine components: pressure gauge, oil cup, air source valve.
Air Source Processor
Precision instruments can be any combination of decomposition to meet the different needs of air. And the oil cup polymeric material, heat sealing performance, impermeable airtight.

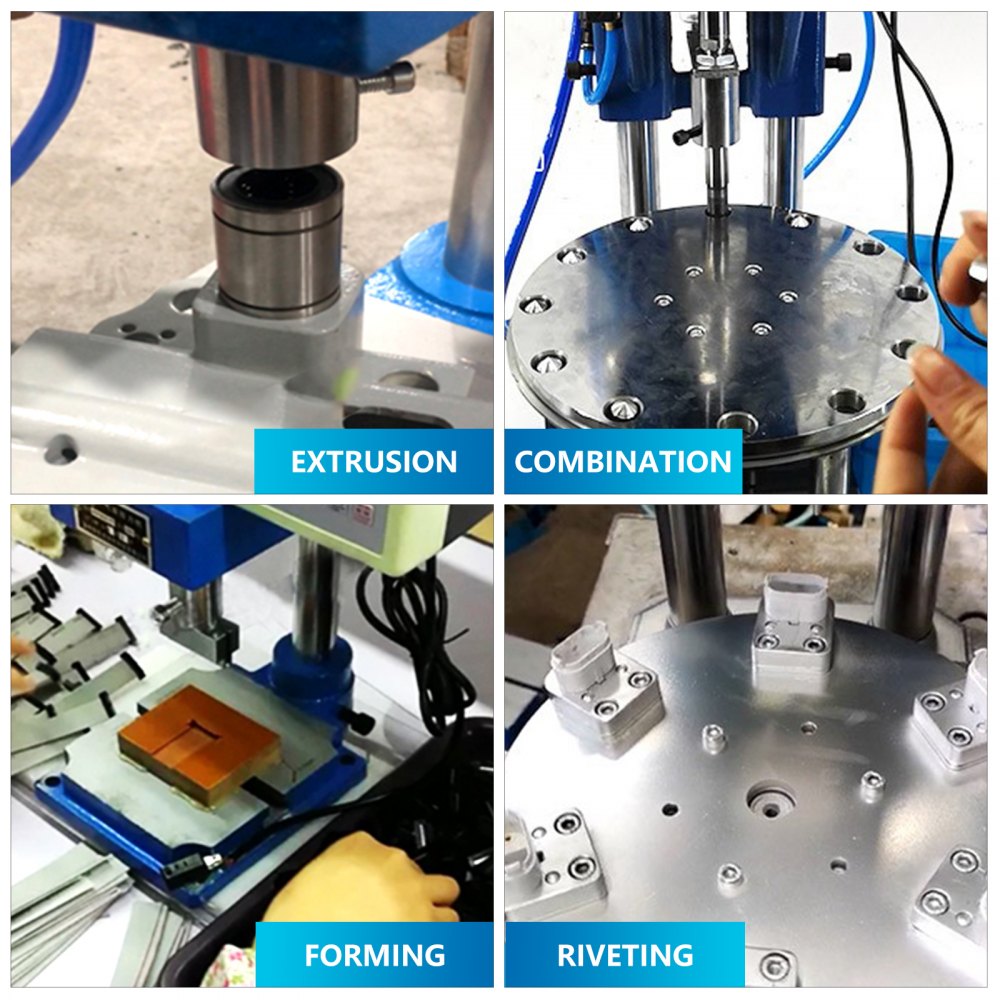

punch press machine showcasing extrusion, combination, forming, and riveting functions.
Multifunctional Use
Pneumatic punching machine is used for pattern hot stamping and can combine workpieces, punching, bending, riveting, extrusion, forming, punching, etc.
punch press machine dimensions: 23" by 8" by 9", base 6" wide.
Specifications
  • Voltage: 110V AC
  • Power Source: Pneumatic
  • Operation Pressure: 0.4-0.7 Mpa (4-7 kg/cm2, or 110-140 PSI)
  • Theoretical Output Pressure: 1121-1962 N / 114-200 kg
  • Actual Output: About 80% Theoretical Output
  • Die Hole Diameter: 0.63" / 16 mm
  • Depth of Throat and Mouth: 5.3" x 5.9" / 135 x 150 mm
  • Stroke: 5.9" x 5.3" / 150 x 135 mm
  • Tracheal Size: 0.31" x 0.2" / 8 x 5 mm
  • Adjustable Cylinder Size: 2.5" x 2.95" / 63 x 75 mm
  • Control Form: Manual
  • Layout Form: Vertical
  • Gross Weight: 39.3 lbs / 17.8 kg
  • Package Dimensions: 26.4" x 13.4" x 13.4" / 67 x 34 x 34 cm
punch press machine with control panel and foot switch
Package Content
  • 1 x Pneumatic Punch Press Machine
  • 1 x Foot Pedal
  • 1 x Manual
